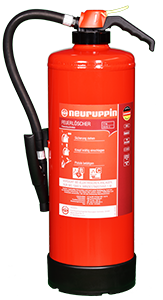

P 12 AS
Neuruppin powder fire extinguishers with charging technology are the benchmark in terms of reliability and serviceability. The P 12 AS is a BC powder extinguisher with an internal steel bottle and a push button fitting as well as an extinguishing gun. This fire extinguisher is used wherever liquid fires and / or gas fires are the main risk, Especially at oil and gas production and processing sites, in the chemical industry, in warehousing for flammable liquids, Mining, agriculture and port facilities.
Applicable to fire class B and C fire
Highest possible ratings according to EN3: 233B / C = 15 fire extinguishing units
Maximum possible safety for electrical installations (max. 1000V at a minimum distance of 1 m)
Optimum control of the extinguishing process by the revolving pistol grip valve
Steel container with high-quality red powder coating, free from TGCI
Designed for easy service and maintenance
Wall mount as standard
Plastic base ring and vehicle holder optionally available
Extinguisher Made in Germany
Documents
Data Sheet > PDF Translation: DE
Optional Equipment
Flexible plastic hoods:
Floor Stands:
Sheet Metal Protection Cabinets:
Plastic protective boxes:
Stand Ring:
Vehicle holder:
907730: Plastic cover 12kg
Floor Stands:
607311: Floor stand for two fire extinguishers 3,6,9,12 kg / l, red lacquered
607310: Floor stand for a fire extinguisher 3,6,9,12 kg / l, red lacquered
0253256: Floor stand for a fire extinguisher 3,6,9,12 kg / l, easy to carry, electro galvanized
0253255: Floor stand for a fire extinguisher 3,6,9,12 kg / l, easy to carry, white lacquered
Sheet Metal Protection Cabinets:
907470: Brass cabinet HL070, red, with sloping roof, without back wall, door with rotary handle and sealable; Outside dimensions: H730 x B370 x T240 mm
907480: Sheet metal cabinet, 2 fire extinguishers up to 12 kg, door can be sealed with rotating handle, with slanting roof; Red Outside dimensions: H755 x B600 x T220 mm
Plastic protective boxes:
607070: Plastic box 12 kg, base gray, top transparent, with neuruppin embossing, outer dimensions: H805 x B370 x T249
607100: Plastic box 9 / 12kg HL040, red, with neuruppin embossing; Outside dimensions: H800 x B335 x T205
907697: Protective cover crystal, gray base, transparent cover, panic closure, outside dimensions: H875 x B355 x T240
907685: Plastic protective cabinet red with door and 2 hook locks; Overall dimensions: H900 x B350 x T220
Stand Ring:
201149: Plastic foot ring diameter 190 black
Vehicle holder:
0253814: Vehicle holder with storage basket
200082: Vehicle holder without support ø190
Specifications
Charging (kg): 12Extinguishing Agent: Neutrex BC
Rating: 233B C
Temperature (°C): -30 / +60
Weight (kg): 18.7
Width (mm): 300
Height (mm): 610
Discharge Time(s): 30
Effective range (m): 6 - 7
Approvals: CE*, EN3
