Products

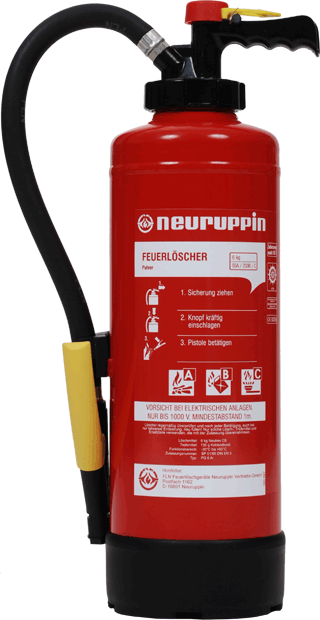

PG 12 Ai
Neuruppin powder cartridge operated extinguisher with charging technology - setting the benchmark in reliability and service friendly design.
This type of extinguisher is used across all types of fire risk protection including warehousing, garages and workshops, public facilities, airports and other high-risk areas. The main areas of application are heavy and chemical industry, energy industries, road, rail and sea transport, agriculture and shipping.
Universal use in A, B and C Class fires
High fire ratings enhance safety margins
Maximum safety margin if accidentally used on electrical devices compared to other extinguishants
Designed for easy service and maintenance
Squeeze grip control valve at hose end allows total control of discharge
Steel cylinder finished in red high-quality polyester powder coating, free of TGCI
Optional plastic foot ring available
Optional vehicle bracket mounting available
Documents
Data Sheet > PDF Translation: DE
Optional Equipment
Flexible plastic hoods:
Floor Stands:
Sheet Metal Protection Cabinets:
Plastic protective boxes:
Stand Ring:
Vehicle holder:
907730: Plastic cover 12kg
Floor Stands:
607311: Floor stand for two fire extinguishers 3,6,9,12 kg / l, red lacquered
607310: Floor stand for a fire extinguisher 3,6,9,12 kg / l, red lacquered
0253256: Floor stand for a fire extinguisher 3,6,9,12 kg / l, easy to carry, electro galvanized
0253255: Floor stand for a fire extinguisher 3,6,9,12 kg / l, easy to carry, white lacquered
Sheet Metal Protection Cabinets:
907470: Brass cabinet HL070, red, with sloping roof, without back wall, door with rotary handle and sealable; Outside dimensions: H730 x B370 x T240 mm
907480: Sheet metal cabinet, 2 fire extinguishers up to 12 kg, door can be sealed with rotating handle, with slanting roof; Red Outside dimensions: H755 x B600 x T220 mm
Plastic protective boxes:
607070: Plastic box 12 kg, base gray, top transparent, with neuruppin embossing, outer dimensions: H805 x B370 x T249
607100: Plastic box 9 / 12kg HL040, red, with neuruppin embossing; Outside dimensions: H800 x B335 x T205
907697: Protective cover crystal, gray base, transparent cover, panic closure, outside dimensions: H875 x B355 x T240
907685: Plastic protective cabinet red with door and 2 hook locks; Overall dimensions: H900 x B350 x T220
Stand Ring:
201149: Plastic foot ring diameter 190 black
Vehicle holder:
0253814: Vehicle holder with storage basket
200082: Vehicle holder without support ø190
Specifications
Charging (kg): 12Extinguishing Agent: Neutrex Super
Rating: 55A 233B C
Temperature (°C): -30 / +60
Weight (kg): 19.5
Width (mm): 290
Height (mm): 600
Discharge Time(s): 30
Effective range (m): 6 - 7
Approvals: CE*, EN3
