PG 6 PDY

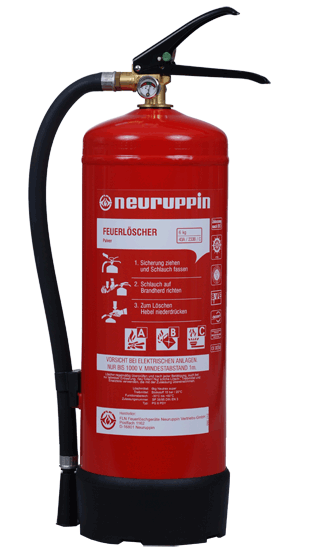

Neuruppin stored pressure powder extinguisher for use on Class A, B and C fire risks.
This type of extinguisher is used across all types of fire risk protection including warehousing, garages and workshops, public facilties and airports. The main areas of application are heavy and chemical industry, energy industries, agriculture as well as road, rail and sea transport.
Universal use on A, B and C fire risks
High fire rating which enhances safety margins
Designed for easy service and maintenance
Steel cylinder finished in red high-quality polyester powder coating, free from TGCI
Optional plastic foot ring available
Optional vehicle bracket mounting available
Special corrosion resistant design for heavy environments available e.g. stainless steel cylinder (see P 6/12 DKX or PG 6/12 DX)
Documents
Data Sheet > PDF Translation: DA, FI, NL, NO, SV DE
Optional Equipment
Flexible plastic hoods:
Floor Stands:
Sheet Metal Protection Cabinets:
Plastic protective boxes:
Stand Ring:
Vehicle holder:
907720: Plastic cover with rubber 6kg
Floor Stands:
0253255: Floor stand for a fire extinguisher 3,6,9,12 kg / l, easy to carry, white lacquered
0253256: Floor stand for a fire extinguisher 3,6,9,12 kg / l, easy to carry, electro galvanized
607311: Floor stand for two fire extinguishers 3,6,9,12 kg / l, red lacquered
607310: Floor stand for a fire extinguisher 3,6,9,12 kg / l, red lacquered
Sheet Metal Protection Cabinets:
907480: Sheet metal cabinet, 2 fire extinguishers up to 12 kg, door can be sealed with rotating handle, with slanting roof; Red Outside dimensions: H755 x B600 x T220 mm
907470: Brass cabinet HL070, red, with sloping roof, without back wall, door with rotary handle and sealable; Outside dimensions: H730 x B370 x T240 mm
Plastic protective boxes:
907754: Rimbox 155, red lid with viewing window, robust design; Outside dimensions: H674 x B313 x T255
907695: Protective cover crystal, gray base, transparent cover, panic closure, outside dimensions: H715 x B310 x T230
607130: Plastic protective case 600 for 6kg / l with neuruppin lettering; Red, with viewing window; Outside dimensions: H670 x B310 x T255
607062: Plastic box 6kg with 2 metal hook locks, gray base, transparent cover
607060: Plastic box 6/9 kg, base gray, transparent cover, with neuruppin embossing, outer dimensions: H645 x B320 x T220
607058: Plastic protective cover GEPAX 7006, DIN 5510; Gray, 2 hook locks; Exterior dimensions H605 x B270 x T210
Stand Ring:
201122: Plastic foot ring diameter 150 black
Vehicle holder:
0253274: Vehicle holder with storage basket
200586: Vehicle holder with support and long holes 6kg
200550: Vehicle holder with 6kg support
Specifications
Charging (kg): 6Extinguishing Agent: Neutrex Super
Rating: 55A 233B C
Temperature (°C): -30 / +60
Weight (kg): 9.4
Width (mm): 230
Height (mm): 530
Discharge Time(s): 21
Effective range (m): 6 - 7
Approvals: CE*, EN3 ,KM, BF, WM**
