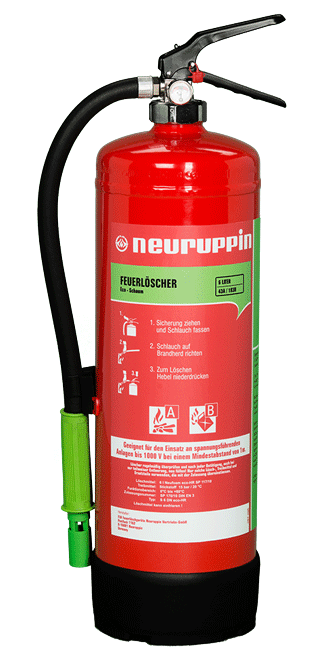

S 6 DN eco HR
The Neuruppin stored pressure foam extinguisher range offers a very efficient localised discharge using only a small amount of foam agent.The extinguisher is certified for its environmental friendliness.
Benefits of this range include a greatly reduced clean up cost when compared to powder extinguishers.
This type of extinguisher is used in frost free areas for A and B fire risk protection, warehousing, (including flammable liquids), the chemical industry, energy industries, public facilities and office buildings.
Milieukeur certificate for environmentally low-impact Eco-foaming agent
Maximum achievable rating according to EN 3: 43A 183B
Universal use on Class A and B fire risks
A stable AFFF layer reduces the risk of re-flash
Tested for use on electrical equipment, [up to 1000V at 1 metre distance]
Enhanced corrosion protection with additional internal corrosion protection via 1 mm internal PE coating, tested twice to ensure layer protection quality
Large diameter neck ring for easy service inspection
Special spray nozzle to optimise droplet size and improve discharge projection range
User friendly long duration of operation
Gauge and pressure check valve are standard
Optional plastic foot ring available available
Optional vehicle bracket mounting available
Optional stainless steel valve grips available
Documents
Data Sheet > PDF Translation: DA, FI, NL, NO, SV DE
Optional Equipment
Flexible plastic hoods:
Floor Stands:
Sheet Metal Protection Cabinets:
Plastic protective boxes:
Stand Ring:
Vehicle holder:
907720: Plastic cover with rubber 6kg
Floor Stands:
607310: Floor stand for a fire extinguisher 3,6,9,12 kg / l, red lacquered
0253255: Floor stand for a fire extinguisher 3,6,9,12 kg / l, easy to carry, white lacquered
0253256: Floor stand for a fire extinguisher 3,6,9,12 kg / l, easy to carry, electro galvanized
607311: Floor stand for two fire extinguishers 3,6,9,12 kg / l, red lacquered
Sheet Metal Protection Cabinets:
907480: Sheet metal cabinet, 2 fire extinguishers up to 12 kg, door can be sealed with rotating handle, with slanting roof; Red Outside dimensions: H755 x B600 x T220 mm
907470: Brass cabinet HL070, red, with sloping roof, without back wall, door with rotary handle and sealable; Outside dimensions: H730 x B370 x T240 mm
Plastic protective boxes:
907695: Protective cover crystal, gray base, transparent cover, panic closure, outside dimensions: H715 x B310 x T230
907754: Rimbox 155, red lid with viewing window, robust design; Outside dimensions: H674 x B313 x T255
607130: Plastic protective case 600 for 6kg / l with neuruppin lettering; Red, with viewing window; Outside dimensions: H670 x B310 x T255
Stand Ring:
201122: Plastic foot ring diameter 150 black
Vehicle holder:
0253274: Vehicle holder with storage basket
200590: 6l Vehicle holder with support ø150
Specifications
Charging (I): 6Extinguishing Agent: Neufoam eco-HR
Rating: 43A 183B
Temperature (°C): 0 / +60
Weight (kg): 10
Width (mm): 225
Height (mm): 565
Discharge Time(s): 47
Effective range (m): 5
Approvals: CE*, EN3, WM**, eco
