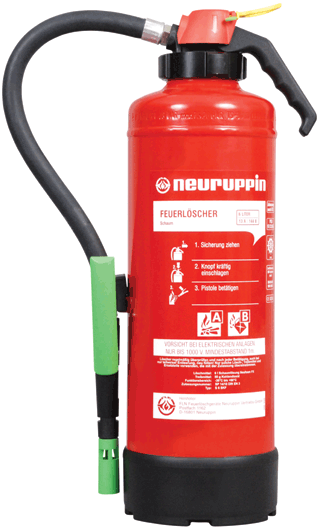

S 9 SKF-1
The Neuruppin foam extinguisher range with charging technology offers a very efficient localised discharge using only a small amount of environmentally low-impact foam agent.
Benefits of this range include a greatly reduced clean up cost when compared to powder extinguishers.
This fire extinguisher is primarily used in outdoor environments with A and B risks, storage.g. warehousing (including flammable liquids), the chemical industry and energy industries.
Temperature range -30° to +60°
Universal use on Class A and B fire risks
A stable AFFF layer reduces the risk of re-flash
Tested for use on electrical equipment, (up to 1000V at least 1 metre distance)
Pressurised only when in use
Enhanced corrosion protection with additional internal corrosion protection via 1 mm internal PE coating, tested twice to ensure layer protection quality
Large diameter neck ring for easy service inspection
Special spray nozzle to optimise droplet size and improve discharge projection range
User friendly long duration of operation
Optional plastic foot ring available
Optional vehicle bracket mounting available
Documents
Data Sheet > PDF Translation: CS, DA, EL, ES, FI, FR, HR, HU, IT, NL, NO, SK, SL, SV DE
Optional Equipment
Flexible plastic hoods:
Floor Stands:
Sheet Metal Protection Cabinets:
Plastic protective boxes:
Stand Ring:
Vehicle holder:
907735: Plastic coating 9kg / l
Floor Stands:
607310: Floor stand for a fire extinguisher 3,6,9,12 kg / l, red lacquered
0253255: Floor stand for a fire extinguisher 3,6,9,12 kg / l, easy to carry, white lacquered
0253256: Floor stand for a fire extinguisher 3,6,9,12 kg / l, easy to carry, electro galvanized
607311: Floor stand for two fire extinguishers 3,6,9,12 kg / l, red lacquered
Sheet Metal Protection Cabinets:
907480: Sheet metal cabinet, 2 fire extinguishers up to 12 kg, door can be sealed with rotating handle, with slanting roof; Red Outside dimensions: H755 x B600 x T220 mm
907470: Brass cabinet HL070, red, with sloping roof, without back wall, door with rotary handle and sealable; Outside dimensions: H730 x B370 x T240 mm
Plastic protective boxes:
907697: Protective cover crystal, gray base, transparent cover, panic closure, outside dimensions: H875 x B355 x T240
907754: Rimbox 155, red lid with viewing window, robust design; Outside dimensions: H674 x B313 x T255
607100: Plastic box 9 / 12kg HL040, red, with neuruppin embossing; Outside dimensions: H800 x B335 x T205
607060: Plastic box 6/9 kg, base gray, transparent cover, with neuruppin embossing, outer dimensions: H645 x B320 x T220
Stand Ring:
201149: Plastic foot ring diameter 190 black
Vehicle holder:
0253814: Vehicle holder with storage basket
200082: Vehicle holder without support ø190
Specifications
Charging (I): 9Extinguishing Agent: Neufoam FO
Rating: 27A 183B
Temperature (°C): -30 / +60
Weight (kg): 11.5
Width (mm): 310
Height (mm): 515
Discharge Time(s): 60
Effective range (m): 5
Approvals: EN3, CE (PED)/MED
