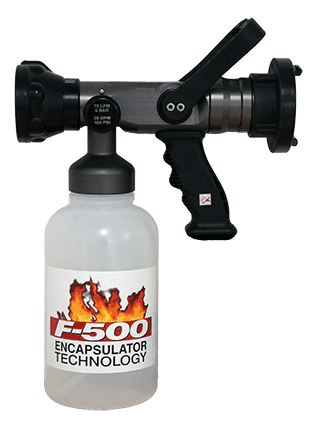

VENTURI Jet Pipes
The specially designed VENTURI jet pipes in combination with the F-500 extinguishant offer fire brigades an environmentally low-impact and more effective way of extinguishing almost any fire. Vehicle fires for example are brought under control much quicker, with much less water and without any foaming agents containing fluorine.
Documents
Datenblatt [DE] > PDF
Specifications
VENTURI 75Flow rate: 75 l/min bei/at 6 bar
Effective range, Full jet: 8 m bei/at 6 bar
Effective range, Spray jet: 4 m bei/at 6 bar
Proportioning rate: 0% / 0,5% / 1% / 3%
Reservoir volume: 2 l
Hose connection: Storz C (52) Other hose connection on enquiry
Length/Width/Height: 277 mm / 120 mm / 421 mm
Weight: 2,2 kg
VENTURI 130
Flow rate: 130 l/min bei/at 6 bar
Effective range, Full jet: 12 m bei/at 6 bar
Effective range, Spray jet: 4 m bei/at 6 bar
Proportioning rate: 0% / 0,1% / 0,5% / 1%
Reservoir volume: 2 l
Hose connection: Storz C (52) Other hose connection on enquiry
Length/Width/Height: 277 mm / 120 mm / 421 mm
Weight: 2,2 kg
