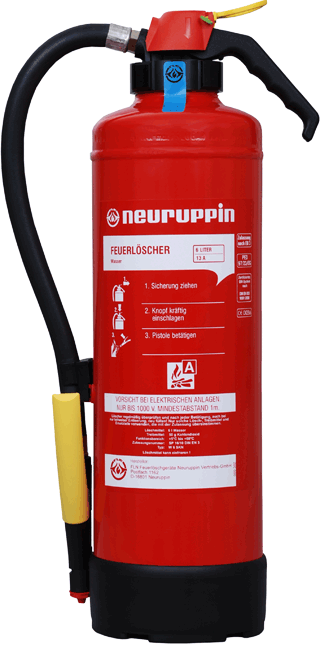

W 6 SKN
The Neuruppin water extinguisher delivers efficient and environmentally compatible performance, with minimum contamination
This extinguisher delivers highly efficient performance, and the extinguishant is fluorine-free.
The main areas of application are public facilities, schools, offices, administration buildings, as well as agriculture, the transport industry, households and warehousing, i.e. wherever the risk assessment shows no risk of a Class B fire.
Special for use on Class A fire risks
High fire rating enhances safety margins
Safety margin due to tested use on electrical equipment [up to 1000V at 1 metre distance]
Pressures only when in use, [cartridge operated version]
Enhanced corrosion protection with additional internal corrosion protection via 1 mm internal PE coating, tested twice to ensure layer protection quality
Swirl effect multi spray nozzle to optimise droplet size and improve discharge projection range
Steel cylinder finished in red high-quality polyester powder coating, free from TGCI
Optional plastic foot ring available
Optional vehicle mounting bracket available
Documents
Data Sheet > PDF Translation: DE
Optional Equipment
Flexible plastic hoods:
Floor Stands:
Sheet Metal Protection Cabinets:
Plastic protective boxes:
Stand Ring:
Vehicle Holder:
907720: Plastic cover with rubber 6kg
Floor Stands:
607310: Floor stand for a fire extinguisher 3,6,9,12 kg / l, red lacquered
0253255: Floor stand for a fire extinguisher 3,6,9,12 kg / l, easy to carry, white lacquered
0253256: Floor stand for a fire extinguisher 3,6,9,12 kg / l, easy to carry, electro galvanized
607311: Floor stand for two fire extinguishers 3,6,9,12 kg / l, red lacquered
Sheet Metal Protection Cabinets:
907480: Sheet metal cabinet, 2 fire extinguishers up to 12 kg, door can be sealed with rotating handle, with slanting roof; Red Outside dimensions: H755 x B600 x T220 mm
907470: Brass cabinet HL070, red, with sloping roof, without back wall, door with rotary handle and sealable; Outside dimensions: H730 x B370 x T240 mm
Plastic protective boxes:
907695: Protective cover crystal, gray base, transparent cover, panic closure, outside dimensions: H715 x B310 x T230
907754: Rimbox 155, red lid with viewing window, robust design; Outside dimensions: H674 x B313 x T255
607130: Plastic protective case 600 for 6kg / l with neuruppin lettering; Red, with viewing window; Outside dimensions: H670 x B310 x T255
607060: Plastic box 6/9 kg, base gray, transparent cover, with neuruppin embossing, outer dimensions: H645 x B320 x T220
Stand Ring:
201122: Plastic foot ring diameter 150 black
Vehicle Holder:
200590: 6l Vehicle holder with support ø150
Specifications
Charging (I): 6Extinguishing Agent: H2O
Rating: 21A
Temperature (°C): +5 / +60
Weight (kg): 10.1
Width (mm): 260
Height (mm): 540
Discharge Time(s): 23
Effective range (m): 5
Approvals: CE*, EN3
