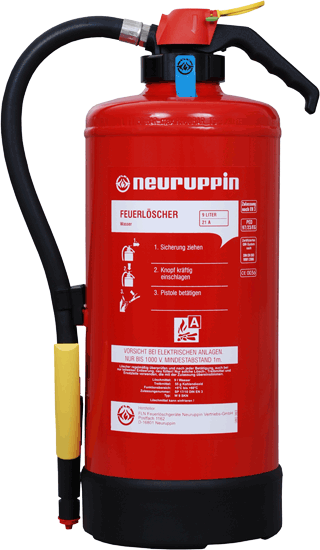

W 9 SKN
The Neuruppin water extinguisher range offers an excellent performance, achieved using water extinguishant for the lowest environmental impact. There are a wide range of application opportunities such as: public facilities, schools and office buildings, administration, agriculture, transport, residential use and warehouses, everywhere the risk assessment does not show a reasonable risk of B Class fires.
Special for use on Class A fire risks
High fire rating enhances safety margins
Safety margin due to tested use on electrical equipment [up to 1000V at 1 metre distance]
Pressures only when in use, [cartridge operated version]
Enhanced corrosion protection with additional internal corrosion protection via 1 mm internal PE coating, tested twice to ensure layer protection quality
Swirl effect multi spray nozzle to optimise droplet size and improve discharge projection range
Steel cylinder finished in red high-quality polyester powder coating, free from TGCI
Optional plastic foot ring available
Optional vehicle mounting bracket available
Documents
Data Sheet > PDF Translation: DE
Optional Equipment
Flexible plastic hoods:
Floor Stands:
Sheet Metal Protection Cabinets:
Plastic protective boxes:
Stand Ring:
Vehicle holder:
907735: Plastic coating 9kg / l
Floor Stands:
607310: Floor stand for a fire extinguisher 3,6,9,12 kg / l, red lacquered
0253255: Floor stand for a fire extinguisher 3,6,9,12 kg / l, easy to carry, white lacquered
0253256: Floor stand for a fire extinguisher 3,6,9,12 kg / l, easy to carry, electro galvanized
607311: Floor stand for two fire extinguishers 3,6,9,12 kg / l, red lacquered
Sheet Metal Protection Cabinets:
907480: Sheet metal cabinet, 2 fire extinguishers up to 12 kg, door can be sealed with rotating handle, with slanting roof; Red Outside dimensions: H755 x B600 x T220 mm
907470: Brass cabinet HL070, red, with sloping roof, without back wall, door with rotary handle and sealable; Outside dimensions: H730 x B370 x T240 mm
Plastic protective boxes:
907697: Protective cover crystal, gray base, transparent cover, panic closure, outside dimensions: H875 x B355 x T240
907754: Rimbox 155, red lid with viewing window, robust design; Outside dimensions: H674 x B313 x T255
607100: Plastic box 9 / 12kg HL040, red, with neuruppin embossing; Outside dimensions: H800 x B335 x T205
607060: Plastic box 6/9 kg, base gray, transparent cover, with neuruppin embossing, outer dimensions: H645 x B320 x T220
Stand Ring:
201149: Plastic foot ring diameter 190 black
Vehicle holder:
0253814: Vehicle holder with storage basket
200082: Vehicle holder without support ø190
Specifications
Charging (I): 9Extinguishing Agent: H2O
Rating: 27A
Temperature (°C): +5 / +60
Weight (kg): 14.5
Width (mm): 280
Height (mm): 510
Discharge Time(s): 32
Effective range (m): 5
Approvals: CE*, EN3, KM, BF, WM**
